Soft Robotic Actuation

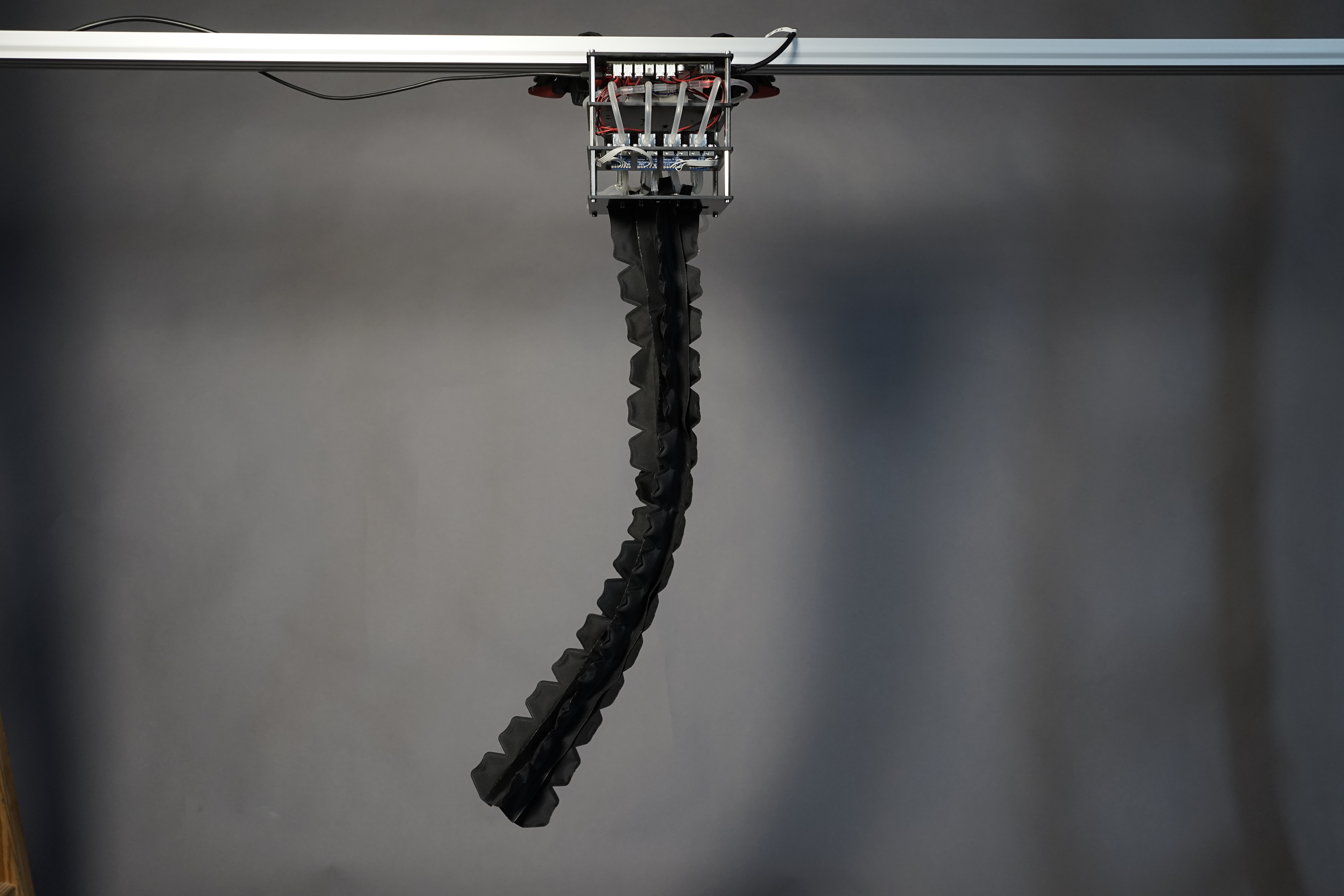

Experiments in the creation of air-based actuators for macroscopic motion control. Welded air-tight chambers made from two-dimensional fabric or foils result in controllable and repeatable motion patterns when pressurised. The resultant actuators can be used to create multidimensional motion apparatuses.
Custom air pressure control systems and software have been developed, and multiple technologies for welding are being explored.
Ongoing research at Materiability Research Group at the University of Applied Sciences Anhalt.
Support for custom electronics by allesblinkt

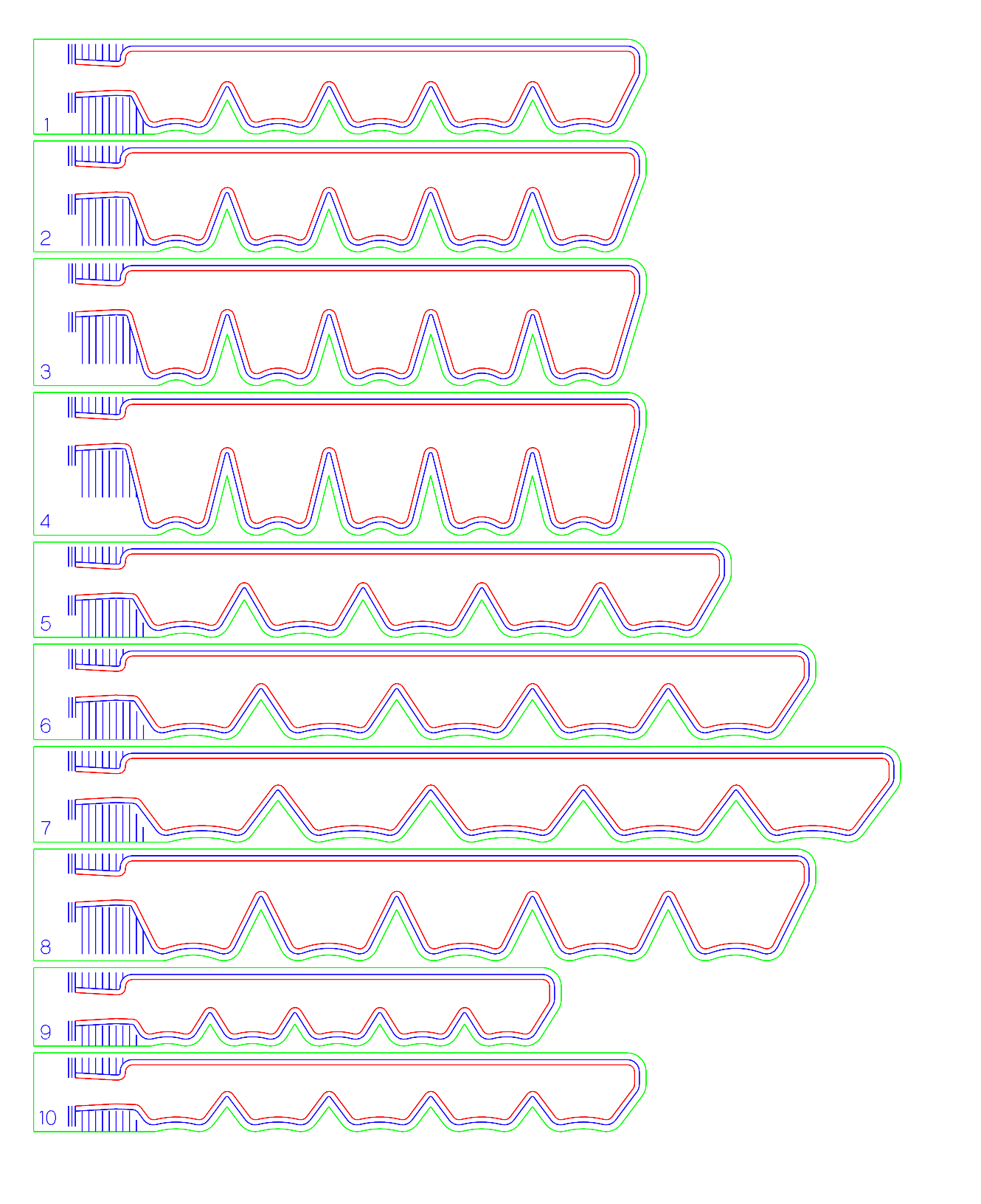

Design parameter study to categorise the impact of changes in height, width, etc. of air chambers

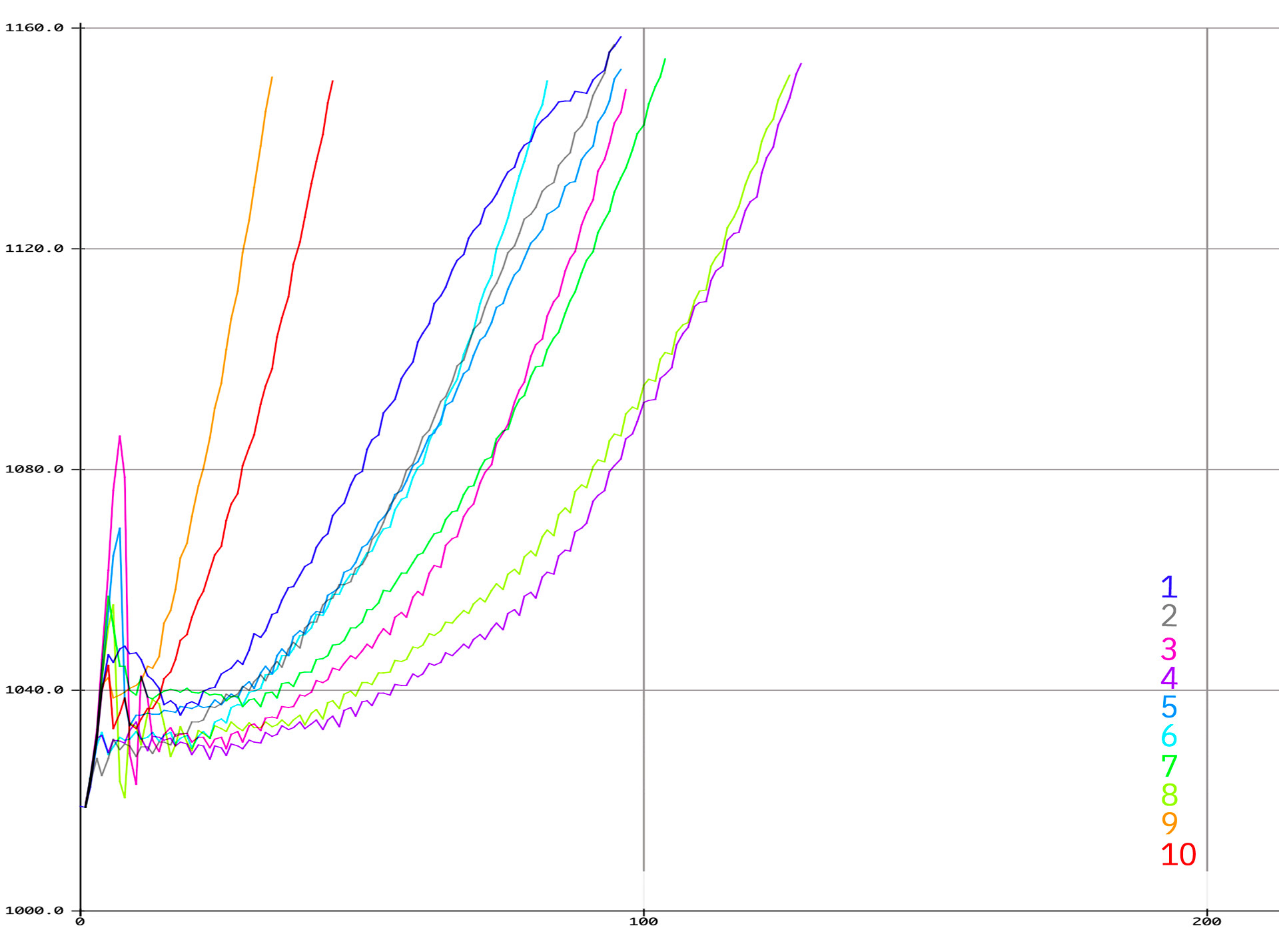

Pressurisation curves
Chamber inlet reinforcement

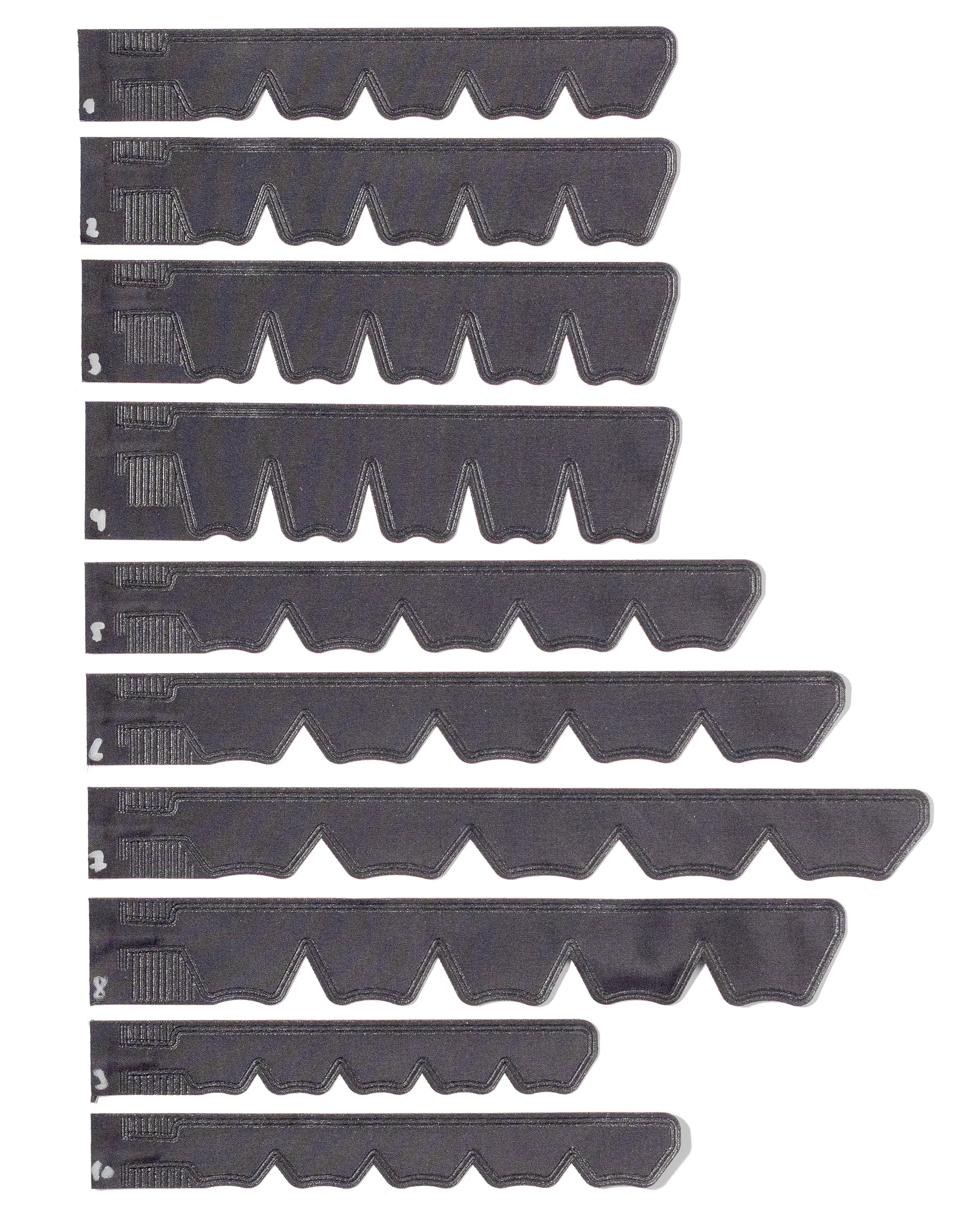

Produced design validators
Chamber size comparison curves

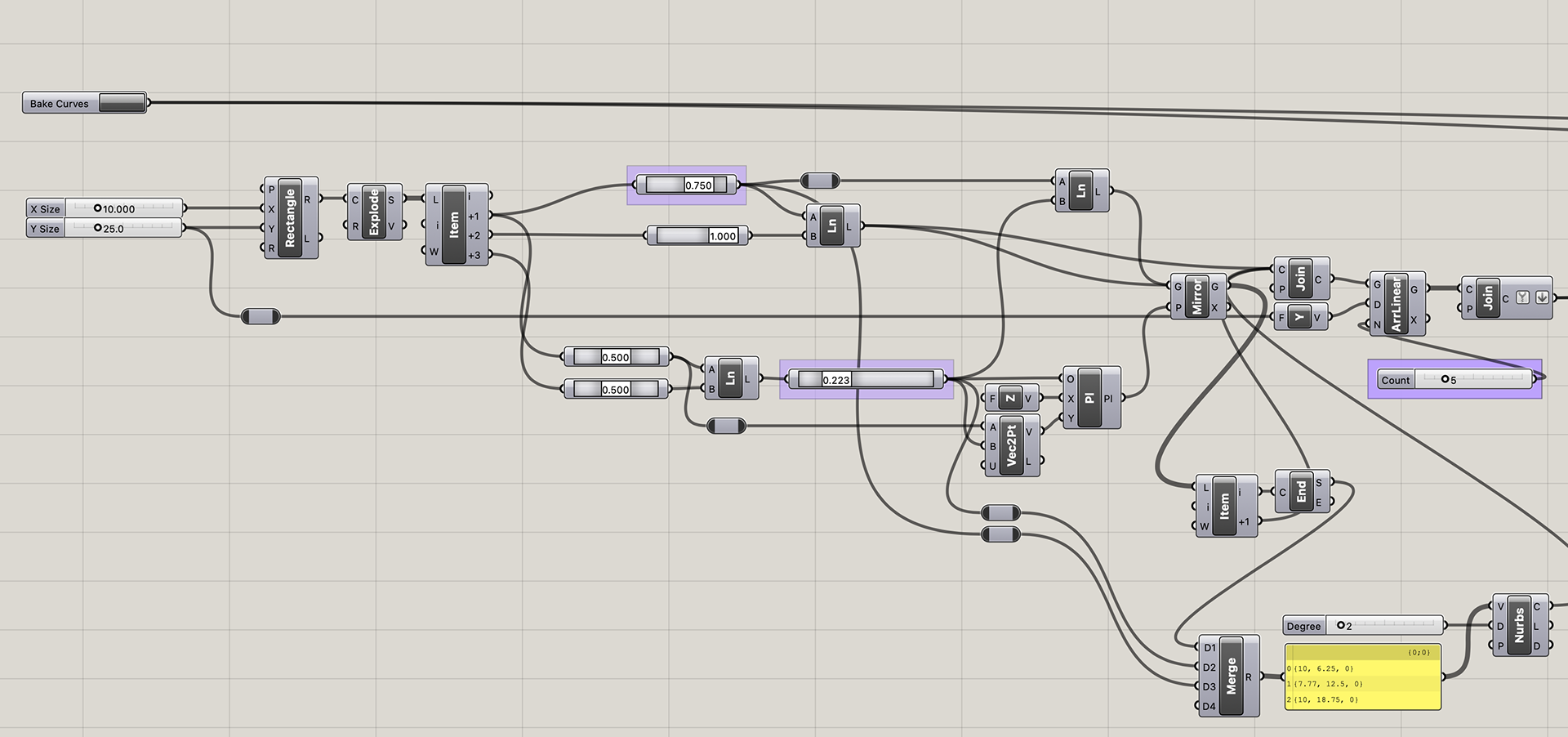

Script to produce production curves parametrically
Laser-based welding of nylon-TPU composite fabric to create air-tight pressure chambers. Two sheets of TPU (thermoplastic polyurethane) coated nylon are secured to a planar surface. In a two-stage process, the sheets are first fused together, and the resultant air chamber is cut out of the remaining sheet material.

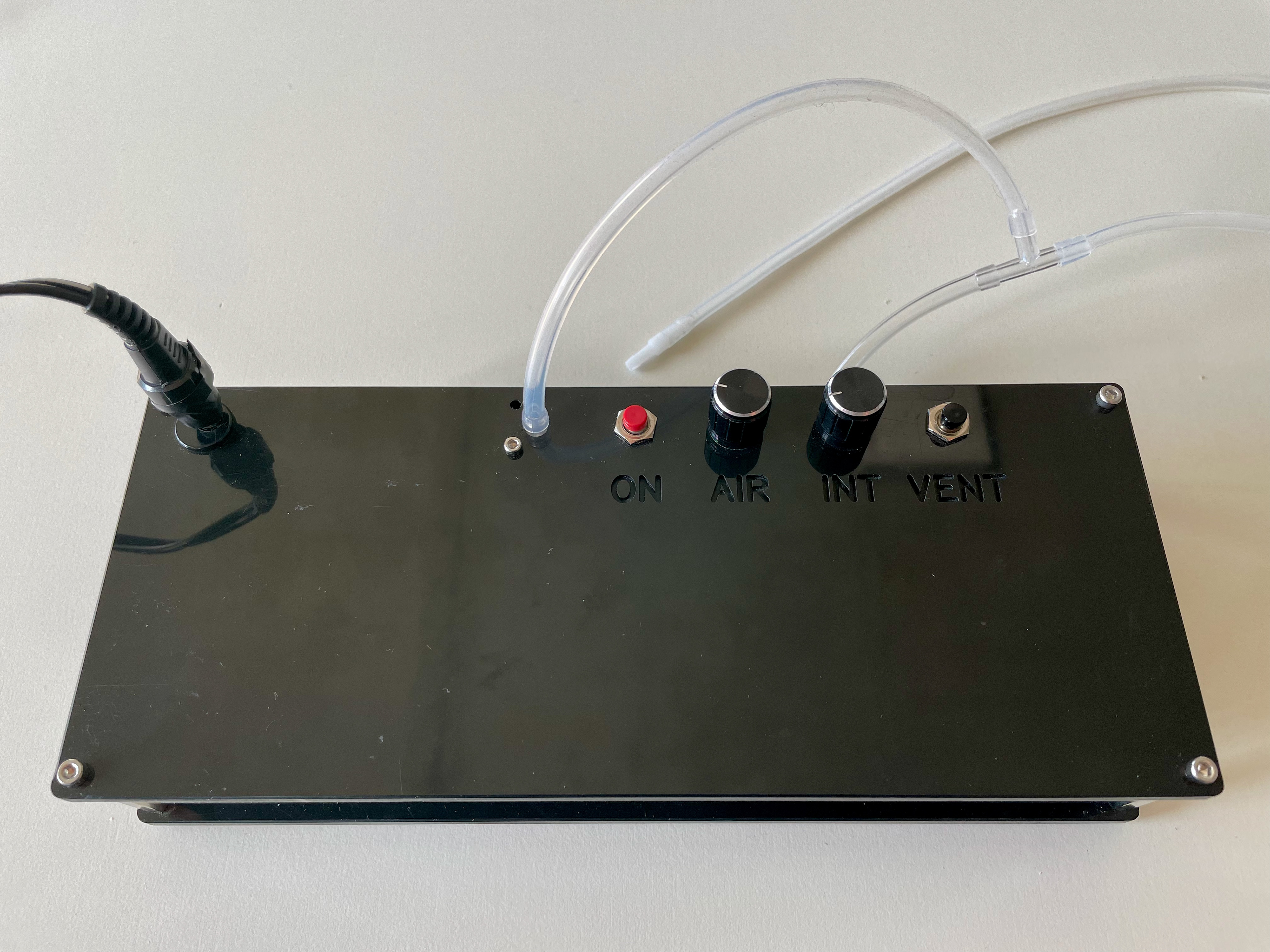

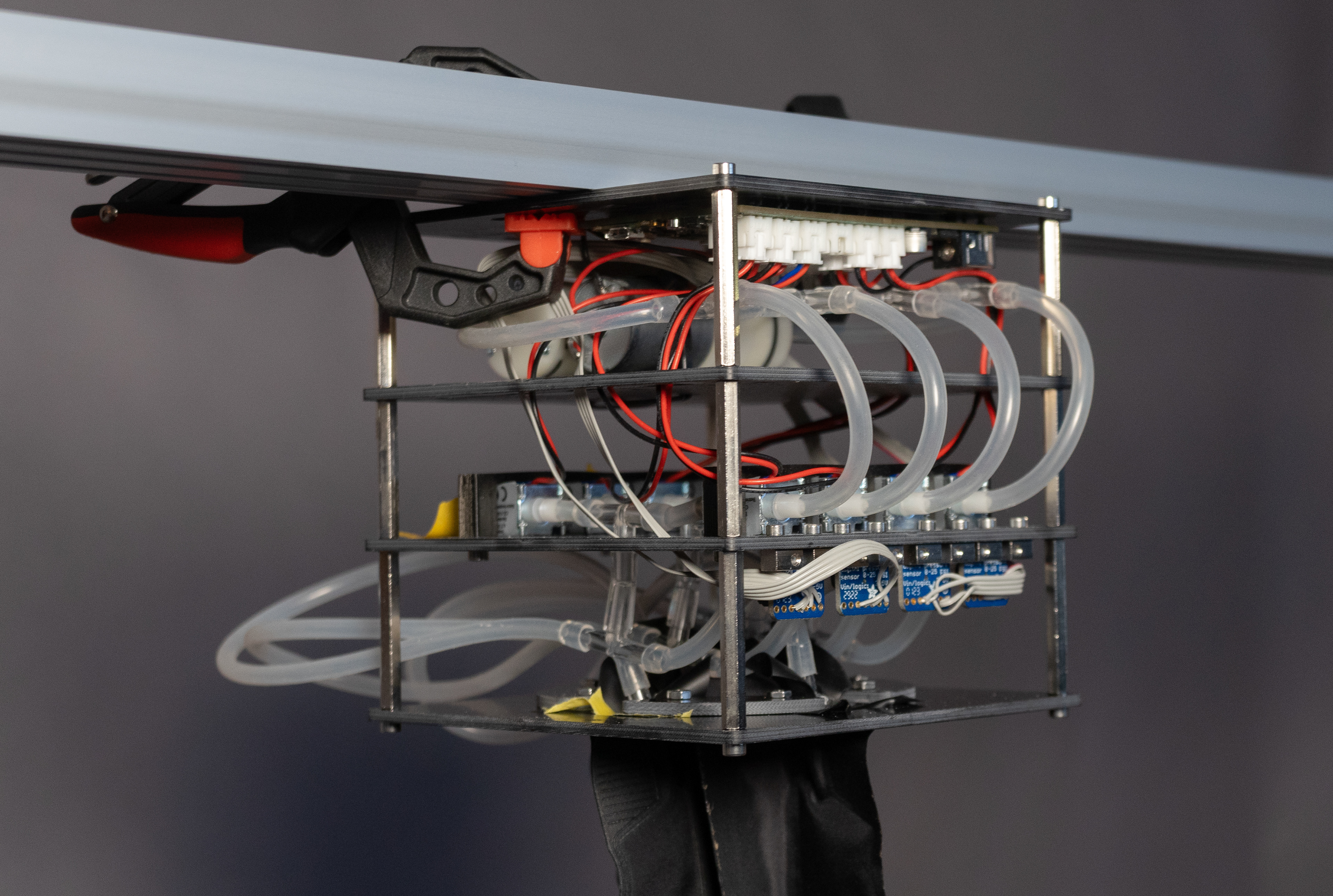

4 chamber control system
